Dillon Indicators

For many applications the value of force measurement equipment is gauged by its ability to work as part of a system. Buildng the right testing system is a matter of selecting measurement tools and recording devices, that will efficiently accomplish your tasks. This is a sample of Dillon instrumentation and peripheral equipment that complete a testing system.

FI-521 Indicator
The FI-521 is a bi-directional load cell instrument accepting both positive and negative load cell signals, internally performing the analog to digital conversion at 80 times per second. The FI-521 Indicator features a IP65 stainless steel enclosure for reliable performance in wet or dusty environments.

FI-521 Features

FI-521 Specifications

FI-521 Brochure PDF

FI-521 Price List PDF


RD-65 Photo RD-65 Remote Display
The Dillon RD-65 is a Highly Durable Remote Display. It has a powder coated mild steel enclosure (IP65) with wall mount swivel bracket or easy to install hanging rings. Adjustable sun visor included

RD-65 Features

RD-65 Specifications

RD-65 Brochure PDF

RD-65 Price List PDF


Data Force Screen Shot Data Force Graphing Software
Dillon Data Force Windows™-based software delivers the full potential of Dillon Digital Force instruments by providing real-time graphing software.
Data Force enables a PC to communicate with Dillon digital instruments via the instruments’ standard bi-directional RS-232 interface. The PC functions as a virtual chart recorder with the following features:
• Force vs time graph (real time)
• Start/stop triggers
• Auto-ranging
• Zooming/re-scaling
• Overlaying the test traces
• Printout of tabular data
• Data export to spreadsheets

Data Force Graphing Software Brochure PDF

Data Force Graphing Software Price List PDF

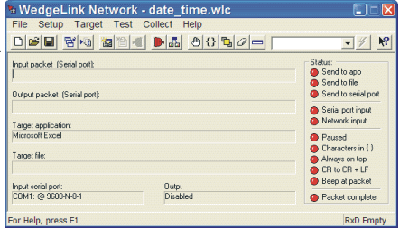

Software Photo RS-232 Software Utilities
Wedgelink captures Dillon instrument readings and sends them transparently to your application or directly to a file. Any program that allows you to manually enter data can receive data directly from Wedgelink. Your application accepts the data as if it were manually entered from the keyboard.
Wedgelink was designed for those who simply want to turn on their computer and begin collecting data. It is extremely easy to use and will save countless hours of tedious data entry.

Wedgelink Price List PDF
