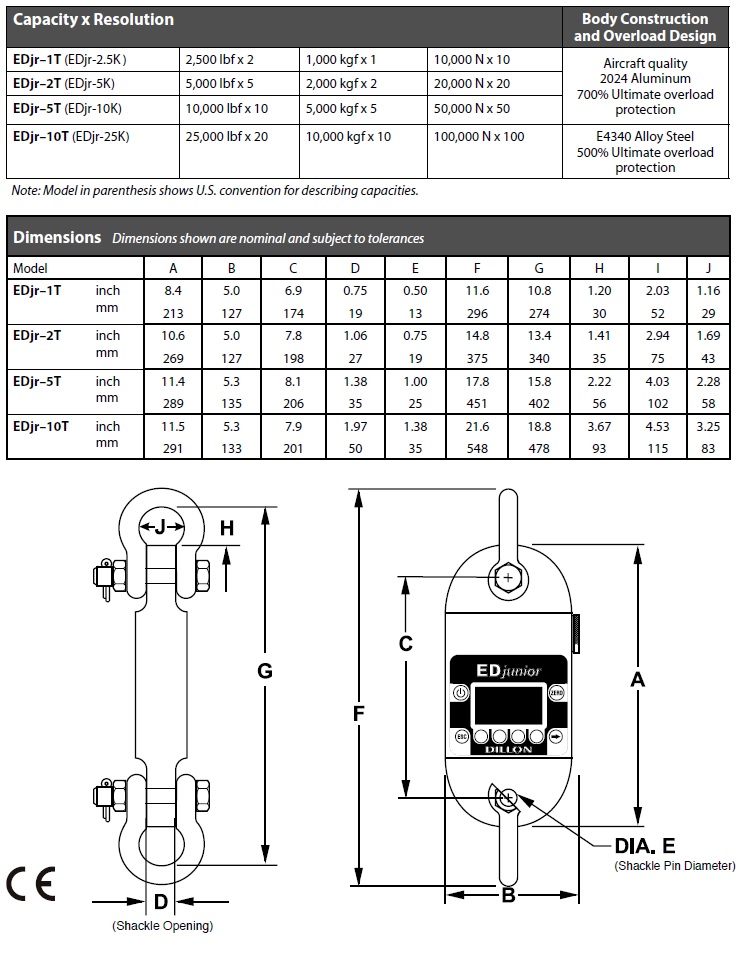

Dillon EDjunior Electronic Dynamometer Specifications


Download the EDjunior Electronic Dynamometer specifications. (PDF format)

Enclosure: Designed to NEMA4X/IP55. Suitable for continuous outdoor use.

Accuracy: 0.2% of capacity.

Repeatability: 0.2% of capacity.

Proof load: 150% of capacity.

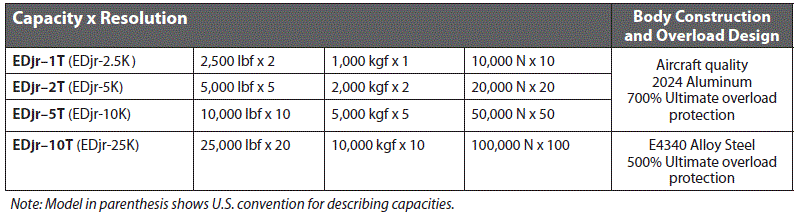

Ultimate overload: See table above.

Safe overload: 200%

Display: 128 x 64 dot-graphic LCD display shows all digits 1.0 (26 mm) high plus annunciators and softkeys.

Display update rate: 2 times per second.

Peak hold sampling rate: 10 times per second typical.

RS-232 communication: Not available. See Dillon EDxtreme.

Calibration: Traceable to the National Institute of Standards and Technology. Calibration card included.

Battery life: 425 hours typical use with two C-cell alkaline batteries.

Backlight: Configurable. Using backlight will consume more battery power, reducing battery life.

Operating temperature: -4 F to 158 F (-20 to 70 C)

Included with instrument: Carry case, Batteries, manual and calibration card.

Warranty: 2 years parts and labor

Overload: Recorded at 120% with date and time stamp: .
