Dyna-Switch Features & Specifications

Flexible application--

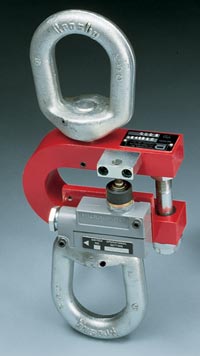

The force beam sensing devices, which are the core of the Dyna-Switch, measure either tension or compression force.

Multi-task instruments--
Each force beam can accomodate from one to four switches. Each switch can have a different load setting. One Dyna-Switch can be set to operate up to four different switching functions or combinations including slack line detection.

Automation controls--
The Dillon Dyna-Switch also works as a straight weighing device used to automate processes.

Custom setting--
Dyna-Switches arrive with switches set to your specifications.

Safe--
Dyna-Switch force beams and attachments have a 5:1 Ultimate Safety Factor (4.5:1 on metric models).

OPTIONS
(Contact your local distributor or the factory for detailed information)

Low differential travel switch -- for 100 to 5,000-lb beams

Weatherproof low differential travel switch-- for 2- to 50,000-lb beams

Explosion-proof switch -- for 2,000 to 50,000 beams

Weatherproof low differential travel switch -- for 100 to 5000-lb beams

Rod end connectors and lifting eye -- for tension rigging

Hardened ball and cup attachment -- for compression use

Non-swiveling hook

SPECIFICATIONS
Catalog #Capacity Min. Set Pt. Repeatability
 lb (kg) lb (kg) lb (kg)
DSW-1 100 (50) 15 (7.5) 3 (1.5)
DSW-2 1000 (500) 100 (50) 30 (15)
DSW-3 2000 (1000) 200 (100) 60 (30)
DSW-4 5000 (2500) 500 (250) 150 (75)
DSW-5 10000 (5000) 1000 (500) 300 (150)
DSW-6 25000 (12500) 1250 (625) 750 (375)
DSW-7 50000 (25000) 2500 (1250) 1500 (750)
