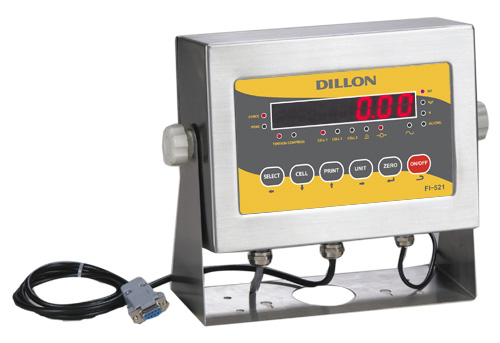

FI-521   Specifications

Power Supply: Input 100 - 240 VAC, 50 - 60Hz internal mounted power supply with output of 12VDC at 2 amps
Display: 7 digits, 7-segment, 0.7 (17 mm) ultra-bright LEDs with 14 annunciators. Max display range -999,999 to 999,999. Display update rate 10Hz.
Keypad: 6 push buttons; select, cell, print, unit, zero, on/off

Environment
Working Temperature:
-10 C to 40 C (14 F to 104 F)
Storage Temperature: -20 C to 70 C (-4 F to 158 F)
Humidity: 10 to 90% RH without condensation
Protection: IP65

Load Cell Drive Capacities
Excitation Voltage:
5VDC
Capacity: Drives up to eight 350-ohm load cells
Signal Connection: 4 or 6 lead load cells
Load Cell Input Range: -15mV to +15mV
Max Load Cell Output: 3mV/V

Communication
Serial Port 1:
Full-duplex RS-232
Serial Port 2: Full-duplex RS-232 or half-duplex RS485
Baud Rate: Selectable 1200-2400-4800-9600- 19200/38400-57600 bps
Data Output Format: 8N1, 7O1, 7E1
Serial Output: Select up to 14 additional data parameters
RS-485: 0-5VDC
Analog Output: 0 to 2.5VDC (= 2.5mA)
Remote Input: Select,cell, print, unit, zero, off
Setpoint 1 & 2: 5 to 24VDC (.5A max) external, 5 to 8VDC (= .1A) internal

Analog Circuit Characters
24-bit A/D converter
A/D Conversion Speed: Peak Force 80Hz; Live Force 10Hz
A/D Conversion: 1mV input will output 100,000 raw counts.
Hardware: low pass filter and 2 programmable digital low pass filters
Max Display Range: -999,999 to 999,999
Division Number Range: 100,000 divisions

Real Clock: Built-in nonvolatile real time & date

Other Main Functions
Programmable Zero Range
Programmable automatic zero point tracking
Programmable motion detection window
Programmable auto-power off time
Adjustable LED brightness
Units of Measure: kgf, lbf, Newton
Configurable serial output content
Two set point output with two data comparison points
